Name: Laboratory Muffle Furnace MF-1100C-S Mini Box Furnace High Temperature Laboratories Furnace 430x580x650 mm
Brand: Laboratory Muffle Furnace MF-1100C-S Mini Box Furnace High Temperature Laboratories Furnace 430x580x650 mm
SKU: MF-1100C-S, MF-1100C-S
Rating: 4.6 (151 reviews)

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Classification: Laboratory Heating Equipments

Model Number: MF-1100C-S

product model: MF-1100C-S

max temperature: 1100â„ƒ(1 hour)

working temperature: â‰¤1000â„ƒ

furnace size: 430x580x650 mm

capacity: 18 liter

temperature accuracy: Â±1â„ƒ

Product name: high temperature laboratory furnace

Información básica

Model Number: MF-1100C-S, MF-1100C-S

Pago y Envío Términos

Packaging Details: The package of high temperature laboratory furnace for Laboratory Equipment MF-1100C-S package :woody package

Supply Ability: 7 Set/Sets per Day

Descripción de producto

Product Description

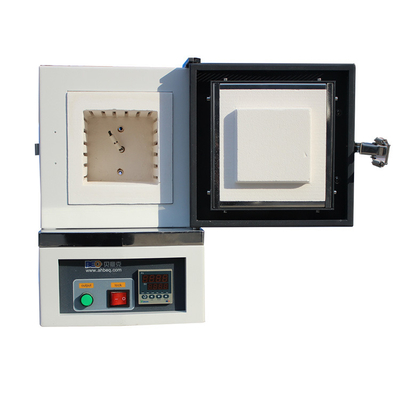

high temperature laboratory furnace

Open-up structure

Chamber size

Product Description:

1.The heating insulation material is vacuum adsorptive alumina firbre inorganic material which is environment-protective .

2.It is adopted PID automatic control and the accuracy of temperature is ±1ºC

3.Multi-heating insulation material make the furnace's volume small, power consumption is ligher( it is about a quarter

compared with the same kind products.

Parameter:

Power	1KW
Voltage	AC 208-240V Single Phase,50/60 Hz
Working temperature	Max. Temperature: 1100 °C(1 hour) Continuous working temperature: ≤1000 °C Suggested heating rate:5-20℃/min
Chamber size	Chamber size:250300250mm(LWH) Capacity:1 Liter
Temperature controller	PID automatic control and auto-tune function. 30 programmable segments for precise thermal processing. Built-in protection for over-heated and broken thermocouple.
Thermocouple	K-type
Temperature accuracy	±1℃
Heating element	Fe-Cr-Al Alloy doped by Mo
Standard accessories	High-temperature glove 1 pair,crucible tong 1pc,brick pad 1pair,power line1pc
Optional accessories	crucible,removable furnace frame
Net weight	15KG
Gross weight	20KG
Dimension	430580650mm
